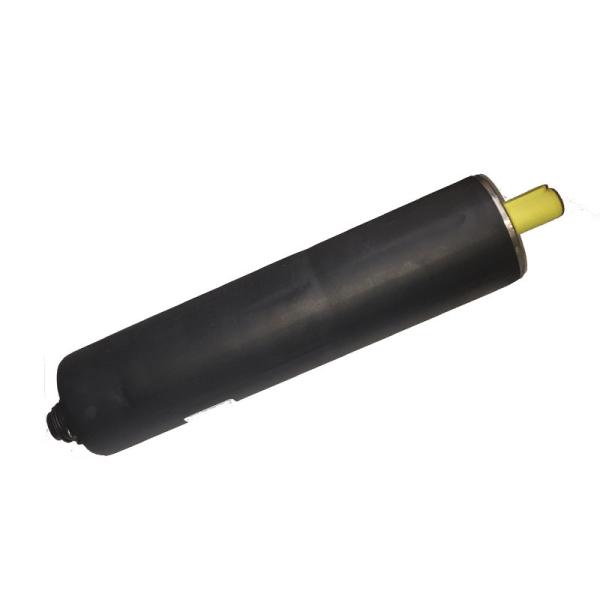

Electric Vehicles 4.9A 1.7Kg Brushless DC Planetary Gear Motor

Brand Name : OEM

Certification : CE/ISO/ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 25000pc/month

Delivery Time : 15-25days

Packaging Details : with export carton

Gearbox Housing : Ruggedised Die-cast Aluminium

Worm Gear Material : Bronze, steel or plastic

Lubrication : Grease lubricated & sealed for life

Insulation Class : Class F (Optional: Class B)

Brush Type : Integral or removable

Ambient Operating Temperature : -20℃ to +40℃

Contact Now

Electric Vehicles 4.9A 1.7Kg Brushless DC Planetary Gear Motor

Description

Geared DC Motors are widely used in AGV’s clay traps, electric vehicles, golf carts, hoists, winches and a multitude of other applications.

Performance Data

Protection Class	IP50
Duty Cycle	S1 (100%)
Rated Voltage	24	V
Rated Current	4.9	A
Input Power	117.6	W
No Load Current	0.4	A
Rated Torque	0.27	Nm
Rated Speed	3350	±10% rpm
Rated Output Power	94.7	W
Friction Torque	2	Ncm
Efficiency	80%
Max. Torque	1.9	±10% Nm
Max. Current	28.5	A
No Load Speed	3650	±10% rpm
Max. Power	245	W
Max. Speed	6000	rpm
Max. Housing Temp.	85	ºC
Weight	1.7	Kg

Customization Options

Brake:

All worm/wheel Geared DC Motors can be supplied with a choice of 12 or 24V parking brake. An optional manual brake release is also available.

Encode:

worm/wheel geared motors can be supplied with a variety of encode types and resolutions.

Gearbox Materials:

worm/wheel Geared DC Motors can be supplied in either ruggedized Aluminum or high-strength, glass-filled plastic composite versions. Plastic and metal worm gears are available for the ideal combination of low noise and high torque.

Custom shaft:

All worm wheel DC motors are available to order with a wide selection of custom shaft configurations.

Applications:

sloar tracking machine
AGV's
clay traps
electirc vehicles
golf carts
hoists

Electric Vehicles 4.9A 1.7Kg Brushless DC Planetary Gear Motor

Dimensions in mm
