12KW Shaft 12mm 150A 90KV Sensorless Brushless DC Motor

Place of Origin : China

Brand Name : OEM

Certification : CE/ISO/ROHS

MOQ : Negotiable

Price : Negotiable

Packaging Details : with export carton

Delivery Time : 15-25days

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 25000pc/month

Speed(RPM) : 7650rpm

Efficiency : 90%

KV : 90KV

Max Current : 150A

Input Volt : 85V

Max Output Watt : 12KW

Max Torque : 15N.m

Hall Sensor : Sensorless

Shaft : 12mm

Application : Electric surfboard, rc boat, speed boat, electric hydrofoil, etc.,

Contact Now

12KW Shaft 12mm 150A Sensorless Brushless DC Motor

Products Description

Name	Outer Rotor Brushless DC Motor	KV	90
Idle Current	1.6A/22V	Max Current	150A
Input Volt	85V	Max Output Watt	12KW
Max Pull	15N.m	Motor Wight	6.5kg
Shaft	12mm	Hall Sensor	Without
Water cooling Tube	Without	Internal Resistance	0.0322
Application	Electric surfboard, rc boat, speed boat, eboard, esurf, motorized surfboard, marine sports,water sports, etc.,

Feature

* Supper smooth start

* Output supper punch and torque

* Supper fast and smooth acceleration

* New sensor design improves performance and efficiency

* Extension wires with golden plug

* High quality stator materials

* Precision balanced rotor

12KW Shaft 12mm 150A 90KV Sensorless Brushless DC Motor

Product Tags:

90KV sensorless bldc motor

7650rpm small brushless dc motor

12KW mini bldc motor

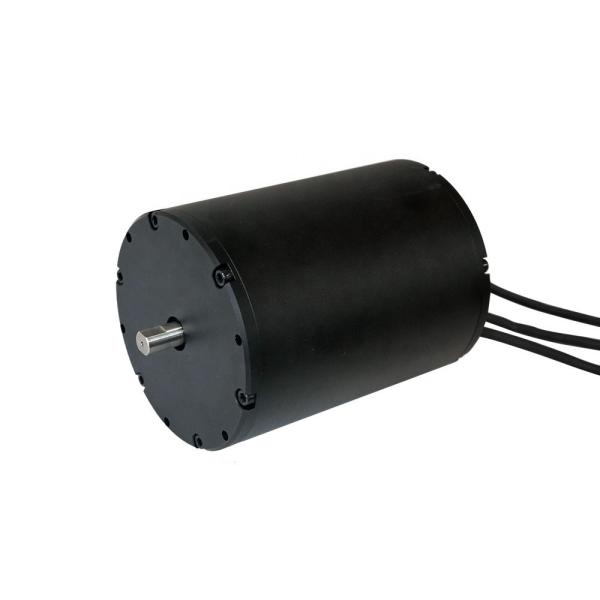

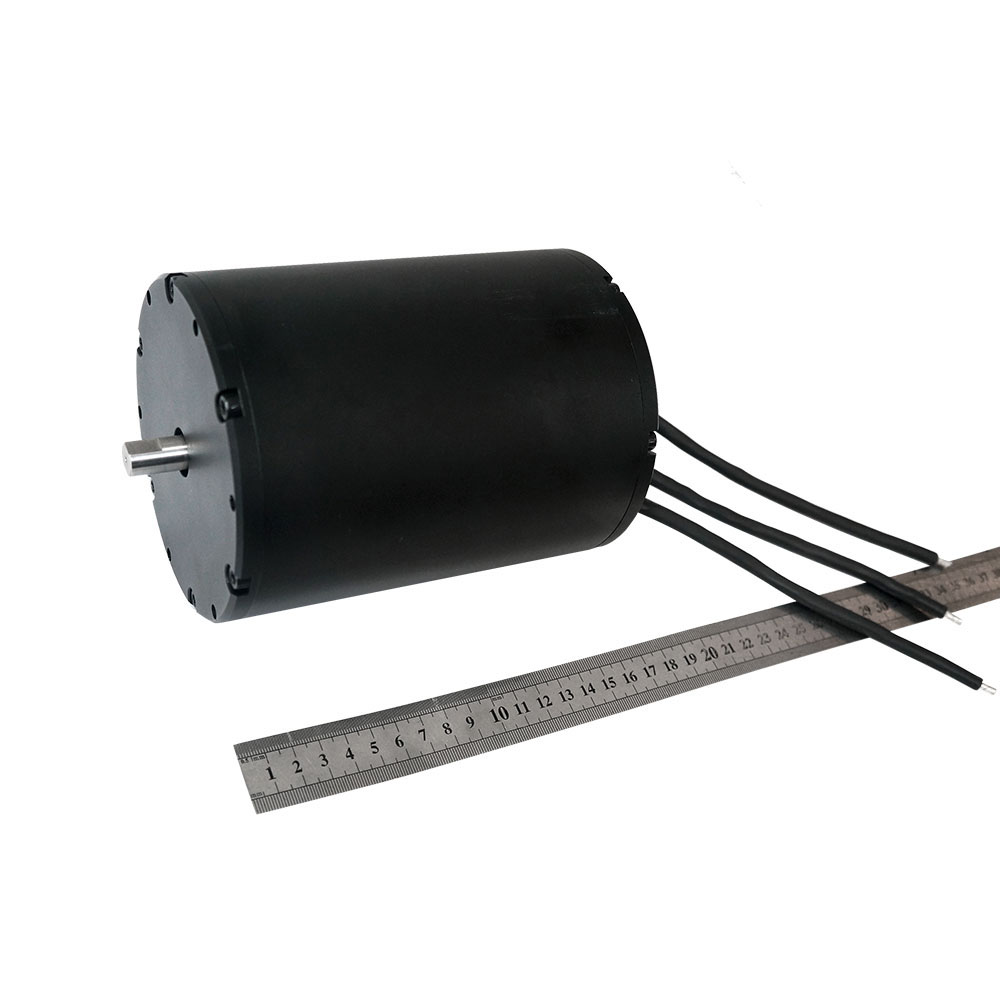

12KW Shaft 12mm 150A 90KV Sensorless Brushless DC Motor Images
