Shaft 8mm Robots 65A 190KV Sensored BLDC Motor

Place of Origin : China

Brand Name : OEM

Certification : CE/ISO/ROHS

MOQ : Negotiable

Price : Negotiable

Packaging Details : with export carton

Delivery Time : 15-25days

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 25000pc/month

Torque : 4N.m

Speed(RPM) : 8568rpm

Continuous Current(A) : 60A

KV : 190KV

Idle Current : 0.8A

Max Current : 65A

Input Volt : 2-12S

Max Output Watt : 3550W

Rated Current : 60A

Shaft : 8mm

Application : Electric skateboard, longboard, mountainboard, fighting robots, etc.,

Contact Now

Shaft 8mm Robots 65A 190KV Sensored BLDC Motor

Products Description

Name	Sensored Brushless DC Motor	KV	190KV, can be customized
Idle Current	0.8A	Max Current	65A
Input Volt	2-12S	Max Output Watt	3550W
Rated Current	60A	Shaft	8mm
Output Shaft Length	26mm	Internal Resistance	0.0402
Hall Sensor	Yes	Motor Cable Length	240mm
Sensor Cable Length	500mm	Motor Connector	4mm Male Connector
Hall Sensor Connect	6pin 2mm Pitch JST Connector	Battle Hardened	Yes
Keyway	With 3mm keyway, key is not included	Cover	Sealed Cover, splash proof and dustproof
Application	Electric skateboard, longboard, mountainboard, fighting robots, e-bike, e-scooter, walking robots, delivery robots, etc.,

Motor Components and Construction

Top Cover and Bottom Cover
Alloy Aluminum, Anodizing, Dust-proof; Black sealed closed cover, IP54 splash waterproof.

Magnets
- NdFeB N45SH material, 14 Poles, strong magnetism.
- Glued by Loctite 326 structural adhesive.
- Max 115°C.
- Battle hardened
- Prevent magnets fall apart, extend motor lifespan.

Stator
1. Hall PCB Board:
- Can detect motor position when start-up, make motor smooth and fast start-up;
- Detect 120°C temperature.
2. Copper wire:
- High temperature Oxygen-free copper wire, can take 220°C temp. ;
- Wind by machine, high accuracy;
- Insulation paint coated, prevent wire dispersion. Anti-oxidation, good conductivity.
3. Silicon Sheet: 0.2mm, the thinner of the silicon sheet, the less consumption of the motor.

Product Tags:

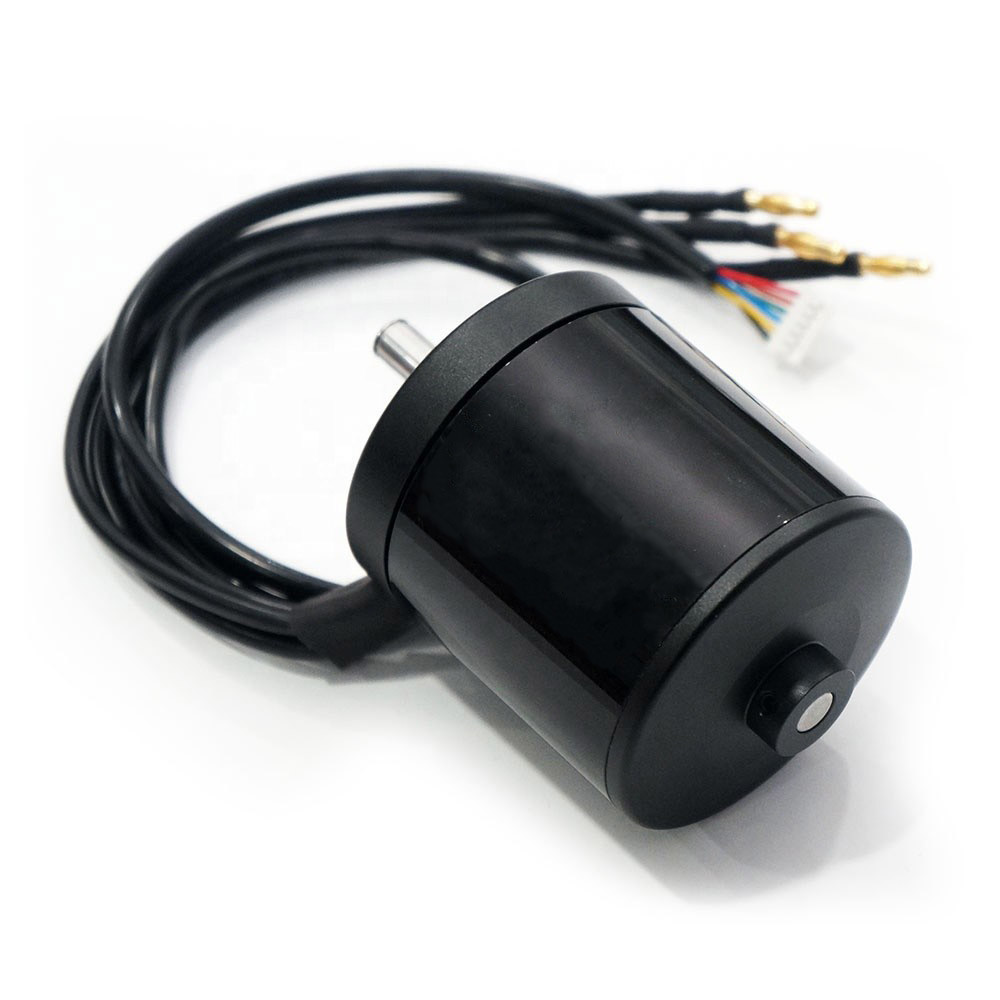

Shaft 8mm Robots 65A 190KV Sensored BLDC Motor Images
